Trimming Machine For Rubber Diaphragm Seals FOR TOYOTA Hydraulic
Hammer, Hydraulic Breaker Rubber Diaphragm Seals; Sealing Ring;
Trimming Machine For Fabric Cup, Hydraulic Piston Seals, And Rings;
Angle Trimmer; Diaphragm Trimmer
Machine Model Recommend: YA-MM-200
About Product Application
Product applicable |

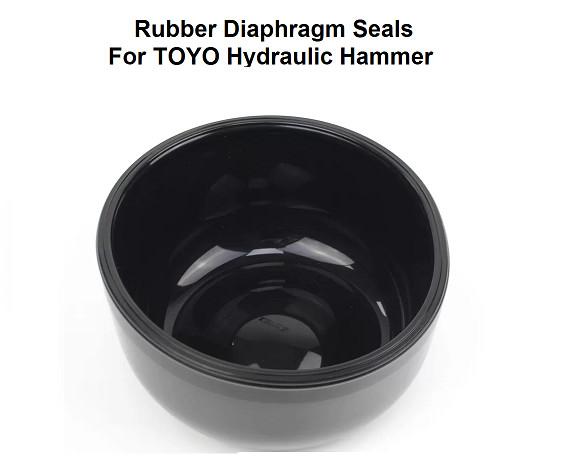

Diaphragm for Hammer Industry; Hydraulic Breaker;
|
| Material: | Rubber, |
| Advantage | Resistant to heat, oil, fatigue, aging, and friction
|
| Application | Sealing Ring
|
SEAL KITS---
| Arm cylinder seal kit | Boom cylinder seal kit |
| Bucket cylinder seal kit | Lever valve seal kit |
| ADJ cylinder seal kit | AV seal kit |
| Main pump seal kit | Hydraulic pump seal kit |
| Travel motor seal kit | Traveling hydraulic motor seal kit |
| Swing motor seal kit | Slewing hydraulic motor seal kit |
| Center joint seal kit | Gear pump seal repair kit |
| Pilot valve seal kit | Control valve seal kit |
| Gear pump seal repair kit |
Oil Seal -- TC TB TCV TCN DB DC DCY TC4Y ISPID BABSL
Piston seal: SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS, OK SELA OUY D-8
Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6
U Seal: UPI UPH USH USI V99F V96H UN
Buff Seal: HBTS HBY HBTTS D-14
Wiper Seal : DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY DH ME-2 ME-8
Wearing Ring: WR KZT RYT
Rotary Seal: ROI D-14 SPN
Back Up Ring : N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O Ring: Oring Kit P series G series AS series S series M 1.5 series M 2.0
series M 1.9series M 2.4 series
M 3.0 series M4.0 series
Valve Pusher Floating oil seal Bushing hydraulic cylinder seals cylinder seal
kits
4. Models listed
| NO | Product size | NO | Product size | NO | Product size | NO | Product size | NO | Product size | NO | Product size |
| 1 | 110*18 | 20 | 128*25 | 39 | 190*40 | 58 | 150*40 | 77 | 230*45 | 96 | UB-4 |
| 2 | 120*26 | 21 | 90*21 | 40 | 76*32 | 59 | 217*30 | 78 | 138*22 | 97 | 140*40 |
| 3 | 170*20 | 22 | 140*11 | 41 | 115*22 | 60 | 65*10 | 79 | 98*20 | 98 | 150*40 |
| 4 | 112*16 | 23 | 110*22 | 42 | 114*22 | 61 | 135*23 | 80 | 115*26 | 99 | TOKU-013(TNB-05S) |
| 5 | 140*60 | 24 | 193*30 | 43 | 90*18 | 62 | 170*35 | 81 | 110*108*3.5P(4) | 100 | 100*33 |
| 6 | 185*50 | 25 | 95*20 | 44 | 90*12 | 63 | 170*35 | 82 | 98*98*3Tφ10 | 101 | 77*36 |
| 7 | 185*50 | 26 | 193*30 | 45 | 144*65 | 64 | 190*40 | 83 | 97*62(LOW) | 102 | 120*75 |
| 8 | 130*33 | 27 | 228*60 | 46 | 150*77 | 65 | 190*40 | 84 | 170*40 | 103 | 88*46 |
| 9 | 96*27 | 28 | 240*62 | 47 | 98*50 | 66 | 100*17 | 85 | 160*35 | 104 | 112*65 |
| 10 | 170*41 | 29 | 192*40 | 48 | 138*68 | 67 | 210*50 | 86 | CP1550 | 105 | 112*15 |
| 11 | 130*30 | 30 | 192*40 | 49 | 144*65 | 68 | 165*23 | 87 | TAMROCK 1000S | 106 | 235*45 |
| 12 | 228*60 | 31 | 205*37 | 50 | 101*21 | 69 | 120*24 | 88 | AMPA3115247200(HIGH) | 107 | 240*62 |
| 13 | 240*62 | 32 | 191*40 | 51 | 82*19 | 70 | 76*32 | 89 | 178*65 | 108 | 236*120 |
| 14 | 267*75 | 33 | 15225488 | 52 | 97*16 | 71 | 82*17 | 90 | 230*45 | 109 | |
| 15 | 280*78 | 34 | 237*41 | 53 | 100*28 | 72 | 185*50 | 91 | 115*24 | 110 | |
| 16 | 170*70 | 35 | 200*100 | 54 | 110*18 | 73 | 108*33 | 92 | 110*108*3.5(5) | 111 | |
| 17 | 200*90 | 36 | 157*70 | 55 | 130*22 | 74 | 117*37 | 93 | SAGA 500H | 112 | |
| 18 | 280*25 | 37 | 160*80 | 56 | 140*40 | 75 | 115*21 | 94 | 240*50 | 113 | |
| 19 | 72*15 | 38 | 160*80 | 57 | 230*20 | 76 | 178*35 | 95 | HL700S(120*75) | 114 |
|
Technical Parameters of Machine :
| Structure & Main data | Model | YA-MM-200 | YA-MM-300 |
| Nos of head/cutter | 2 | 3 |
| Vacuum degree(Mpa) | 0.5~1 |
| Size of blade(mm) | 2x3x100 |
| R.P.M Machine Spindle | ~3000, adjustable |
| Power(voltage) | 3PH, AC380V±5% |
| Motor(kW) | 0.75 | 1 |
| Frequency(Hz) | 50/60 | 50/60 |
| | | |
| Function & Performance | Operation & Control Mode | PLC & HMI |
| Manual feeding and auto-offloading |
| 5 operation mode | 9 operation mode |
| With alarm sensors to protect operators' safety |
| Head/Cutter Part | Cutting angle (degree):~90 (Adjusted) |
| Trimming the plane face, and inner and outer bevel angle at the
same time. |
| Efficiency (pcs/min) | 10~25 | 10~20 |
| Trimming Range(mm) | Ø3~200 (Vertical)
~160 ( Horizontal) | Ø3~250 (Vertical)
~180 ( Horizontal) |
| Precision of Main shaft(mm) | ±0.01 (radial direction)
±0.02 (head face) |
| | | |
| Packing Infos | Equipment Weight(KG) | 280 | 320 |
| Equipment Size(cm) | 105*80*152 | 115*80*162 |
VIDEO OF THE TRIMMING PROCESS
ON YOUTUBE
Order Options :
Nos of the head;
Size of trimming range;
Color of Machine;
Auxiliary feeding device;
Auxiliary unloading device;
Tags:
Trimmers; Trimming Machines; Angle Trimmers; Rubber Trimming
Machines; Mandrel Cutting Machines; Slicing Cutting Machines; Precision
machines for cutting off rings and slices; Oil filter sealing
gasket making machines;
Slice machine; Slicer; Circular knife cutting machines for cutting
gaskets; Rubber gasket cutting machine; Gasket making machine;Rotary style gasket cutter; Rotary cutting machine; Rubber slitting
machine; Machines for hose and tube processing;Cutting machine for
hoses and tube processing; Machine for rubber and plastic
processing; Cutting machine for gaskets and o-rings;
For more details, please contact us freely !!!
CONTACT INFOS
Person: Susanna
INTER-CHINA RUBBER MACHINERY CO., LTD.
www.rubbermachinery-china.com
Mob:+0086-13179487165
SKYPE: rubbercutting
Email: info@rubbermachinery-china.com
