Case Study: Pump Filter Gaskets Cutter;
Gaskets cutters;
Cutting machine for washers and gaskets;
Advantages of Inter-China Mandrel Cutting Machine:
1. High precision for each cut. Ensure the quality of each unit.
2. Much faster compared to the traditional cutting method.
3. Not only for flat facing, but our cutting machine can also do
the fine cutting job on raised parts.
4. Free of flashes, burrs;

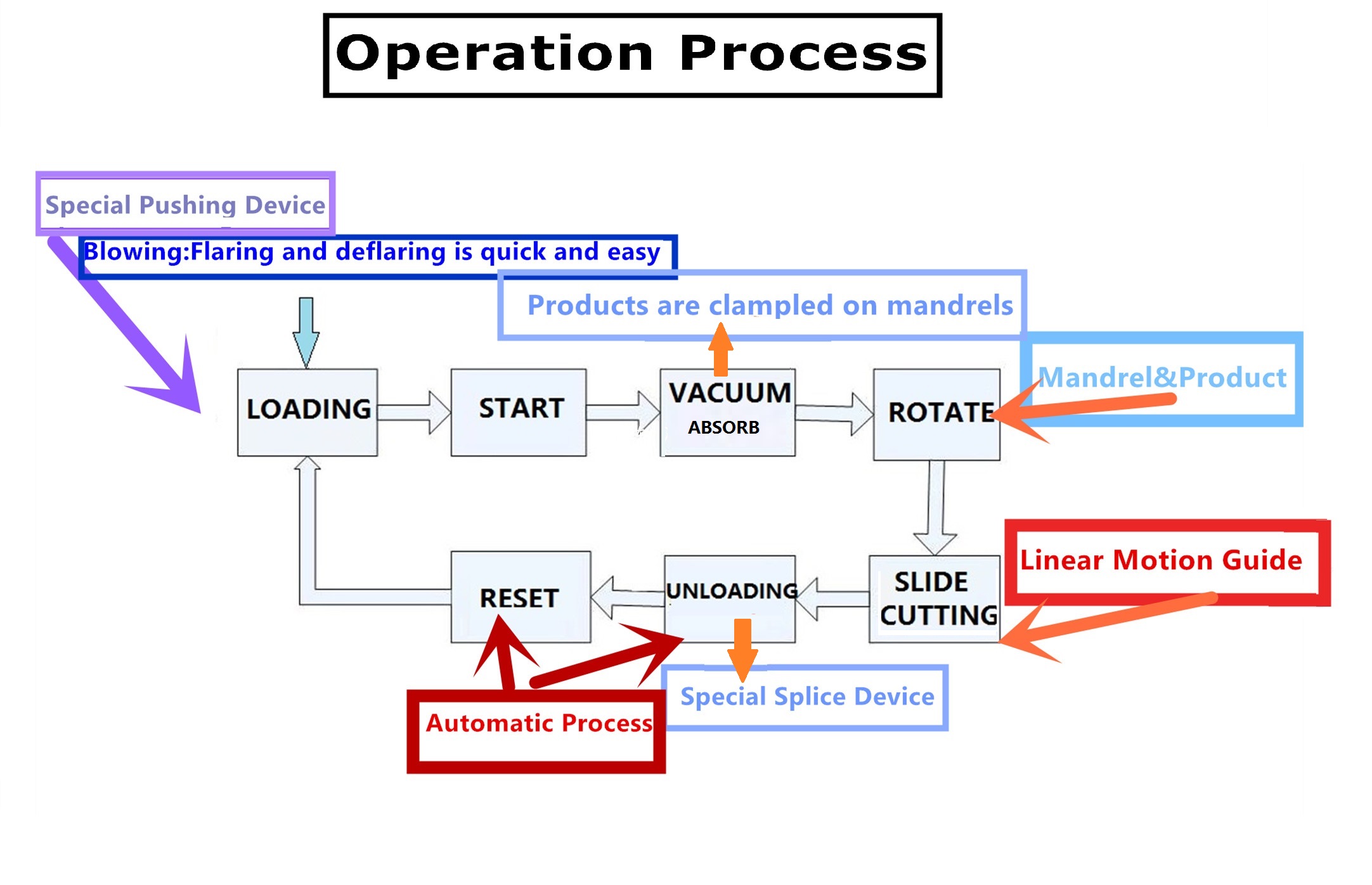

Machine Process Chart :
OPERATION PROCESS
To produce the plain section gaskets, rubber tubes – already cut to
length – are stretched onto mandrels. Loading and unloading of the
tubes onto the mandrels is done quickly by a special unit and
without any particular skill being required.
A knife carriage travels along the tubes, cutting the rings to the
required length, either with slotting tools or circular knives.
The use of the most modern servo-technologies makes the mandrel
machines even more versatile: knife penetration speed and carriage
advance are fully free-programmable – for optimal processing of
materials with different characteristics.
Automaticlly discharging .
Technical parameters:
| PERFORMANCE |
| Model No (Advanced Series ) | INC-200-1 | INC-400-1 |
| Nos of Spindle/Mandrel | 1 |
| Cutting rate max. | 140 cuts/min |
| Mandrel Rotation Speed | 0～2800 r/min |
| Cutting Precision | ≤±0.03mm |
Cutting ranges
(Tailor-made is accepted) | Diameter | Φ2.8mm～Φ230mm |
| Length | Standard≤150mm | Large sized≤380mm |
| Thickness | ≤28mm |
| SPECIFICATIONS |
| Compressed Air Consumption | 20 L/min |
| Atmospheric Pressure | 0.5MPa～0.8MPa |
| Working Vacuum Degree | ≤-0.035MPa |
| Power Source | 1.Single Phasex220V/50HZ±5%
2. Three Phase x380V/50HZ±5% |
| Total Power | 2~2.5KW |
| Device Weight | ≈280 KGS | ≈320 KGS |
| Device Size (L×W ×H) | 1150×750×1120mm | 1650×750×1120mm |
| SPARE PARTS |
| Cutting Tools | (1) circular knife:Φ60×Φ25.4×0.3mm |
| (2) strip knife:65×7×0.3mm |
| Cutting Mandrel/spindle | fit product size for cutting |
Our standard machine is suitable for this sample.
Order Options:
Nos of mandrel: 1/2/3/4 are available;
Machine Painting Color;
Range of Cutting Length;
Range of Cutting Diameter;
Water cooling system;
Tail Bracket (As the supporting device for longer-length products)
Auxiliary pushing device for loading;
Auxiliary splice device for unloading;
Tags:
PTFE gaskets, Teflon gaskets;FKM GASKETS, VITION GASKETS, FPM
GASKETS.Gasket cutting machine;latex cutting device, latex bands,
Yoga belt, sports elastic belt, Mandrel Cutting Machine; Slicing Cutting Machine; Precision
machines for cutting off rings and slices; Oil filter sealing
gasket making machine;Slice machine; Slicer; Circular knife cutting
machines for cutting gaskets; Rubber gasket cutting machine; Gasket
making machine;Rotary style gasket cutter; Rotary cutting machine; Rubber slitting
machine; Machines for hose and tube processing;Cutting machine for
hoses and tube processing; Machine for rubber and plastic
processing; Cutting machine for gaskets and o-rings;
A Free Sample Trial is available, please contact us freely !!!
