Strip Cutter For Rubber and Silicone, Slitting Machine - C-type

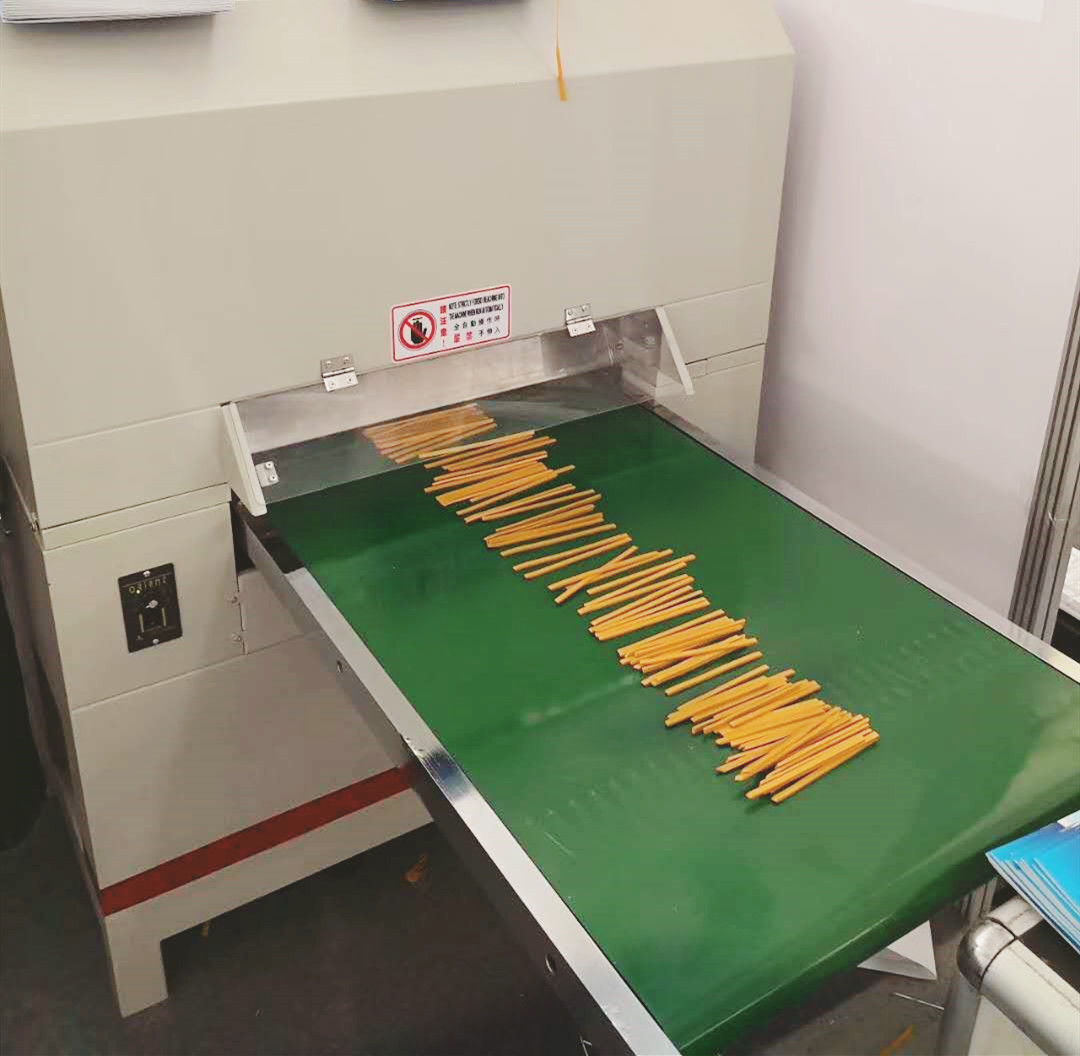

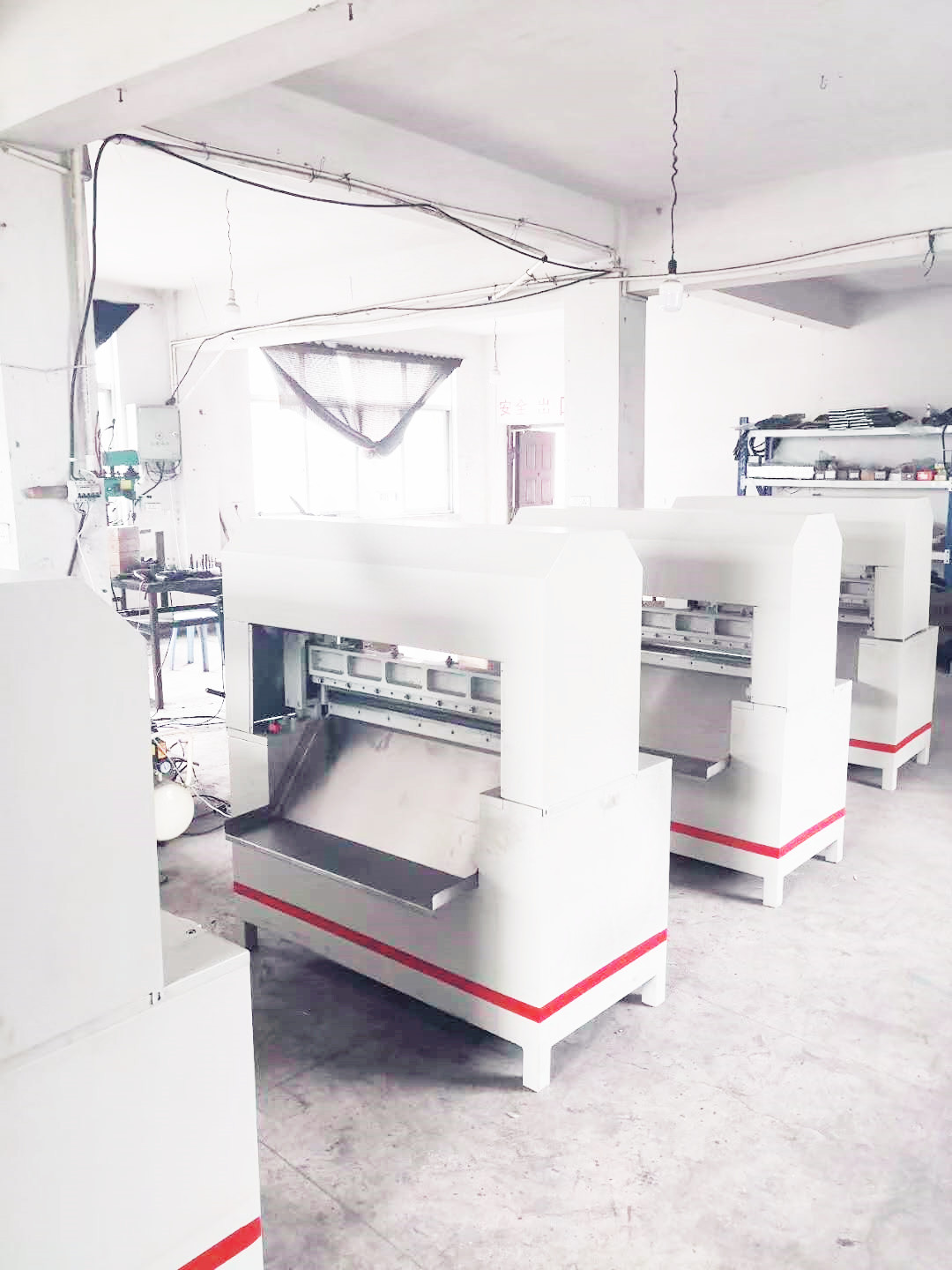

Rubber Strip Cutter
an automated system for use with rolls and sheets of rubber;
Features:
- Quick and automated method of cutting rubber strips;
- Simple to operate PLC and touch display, includes programmable
counter function;
- Cutting speed can be adjusted;
- Strong and powerful chain driving system for cutter moving up and
down;
- Stable pneumatic pressure roller for feeding ；
Chain drive has many advantages, compared with belt drive,
inelastic sliding, and slipping phenomenon, the average
transmission ratio is accurate, reliable, and highly efficient;
Large transmission power, strong overload capacity, and small
transmission size under the same working conditions. The required
tension is small, and the pressure acting on the shaft is small.
Able to work in high temperatures, humidity, dust, pollution, and
other harsh environment.
VIDEO OF OUR STRIP CUTTER ON
YOUTUBE
Technical Parameters
| Model | Unit | YH-600C | YH-800C |
| Driving Method | | Chain Gear |
| Max. feeding width | mm | 560 | 800 |
| Max. cutting Width Thickness/Height | mm | 20 | 20 |
| Max. cut stroke | mm | 999.9 | 999.9 |
| Min. cut stroke | mm | 0.1 | 0.1 |
| Cut efficiency | Times/min | 100 | 80 |
| Cut precision | mm | ±1 | ±1 |
| Motor power | KW | 1.5 | 2.2 |
| Dimensions | LxWxH:mm | 1000x850x1350 | 1200x850x1450 |
| Weight | KG | 520 | 600 |
Order Options :
Conveyor
Color of Machine
Control Mode: Button or HMI
For more details, please get in touch with us freely !!!
