Mandrel Cutting Machine; Slicing Machine; Cutting Machine for
gaskets and washers;
Gasket Cutters; Seal Cutters;
Application details

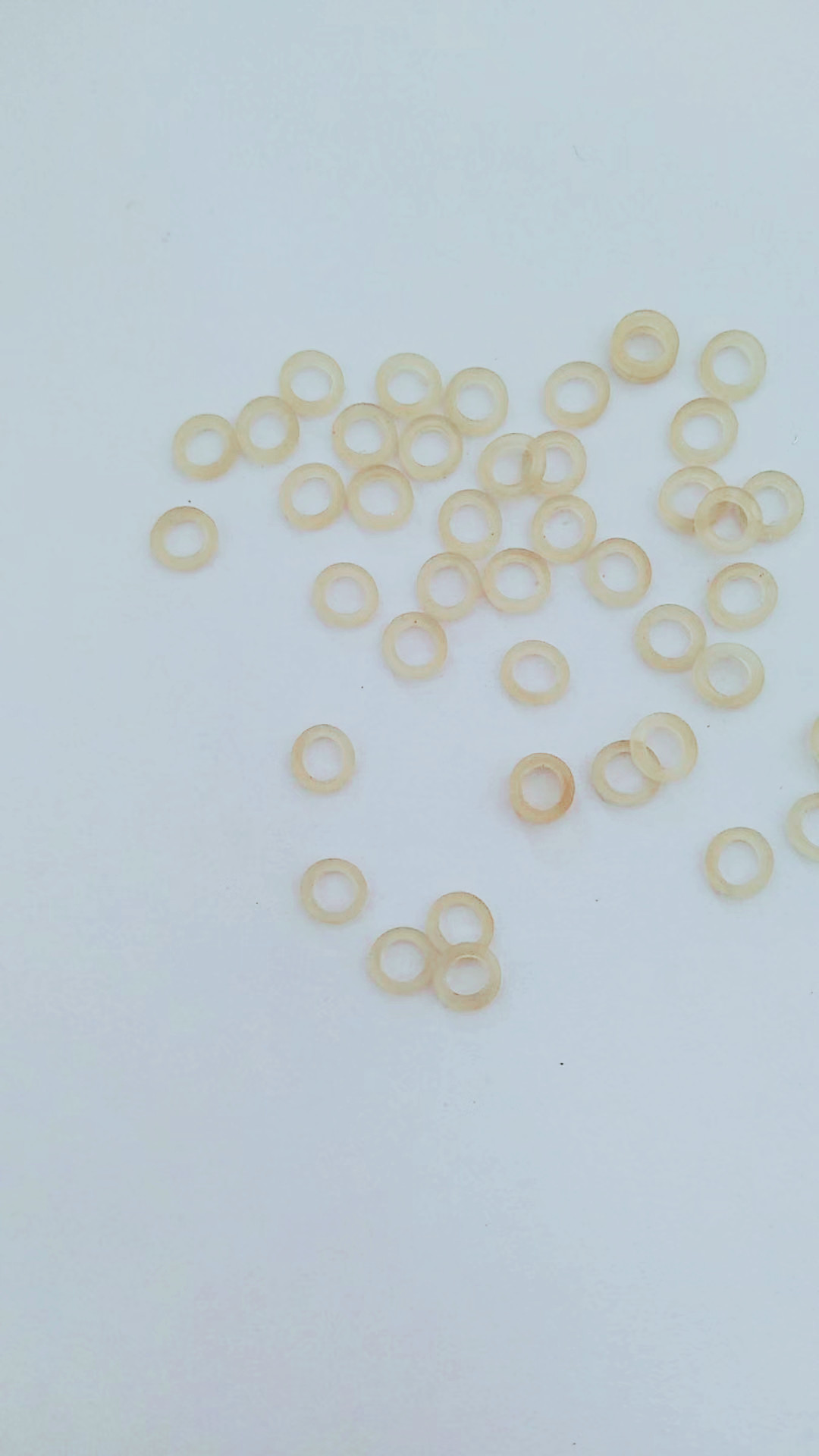

| Product name | Silicone rings, Gaskets, seal, flat seal, silicone seal |
| Specification | 5*3*1.5mm |
| Material | silicone, Food grade, FDA |
| Usage | sealing, water resistance, |
| Industry | Electronic |
| Recommend machine model | INC-400-2 |
| Capacity | 30,000~40,000 PCS/10 HOURS |
Advantages of our machine:
1. High precision for each cut. Ensure the quality of each unit.
2. High efficiency compared to traditional cutting method.
3. Not only for flat sections, but our cutting machine can also do
a fine cutting job on raised parts.
4. A new method of making seals, free of burrs and flashes;
Machine Process Chart :
Technical parameters:
| PERFORMANCE |
| Model No (Advanced Series ) | INC-200-1 | INC-400-1 |
| Nos of Spindle/Mandrel | 1 |
| Cutting rate max. | 140 cuts/min |
| Mandrel Rotation Speed | 0～2800 r/min |
| Cutting Precision | ≤±0.03mm |
Cutting ranges
(Tailor-made is accepted) | Diameter | Φ2.8mm～Φ230mm |
| Length | Standard≤150mm | Large sized≤380mm |
| Thickness | ≤28mm |
| SPECIFICATIONS |
| Compressed Air Consumption | 20 L/min |
| Atmospheric Pressure | 0.5MPa～0.8MPa |
| Working Vacuum Degree | ≤-0.035MPa |
| Power Source | 1.Single Phasex220V/50HZ±5%
2. Three Phase x380V/50HZ±5% |
| Total Power | 2~2.5KW |
| Device Weight | ≈280 KGS | ≈320 KGS |
| Device Size (L×W ×H) | 1150×750×1120mm | 1650×750×1120mm |
| SPARE PARTS |
| Cutting Tools | (1) circular knife:Φ60×Φ25.4×0.3mm |
| (2) strip knife:65×7×0.3mm |
| Cutting Mandrel/spindle | fit product size for cutting |
Our standard machine is suitable for this sample.
Order Options:
Nos of mandrel: 1/2/3/4 are available;
Machine Painting Color;
Range of Cutting Length;
Range of Cutting Diameter;
Water cooling system;
Tail Bracket (As the supporting device for longer-length products)
Auxiliary pushing device for loading;
Auxiliary splice device for unloading;
Tags:
Gasket cutting machine latex cutting device, latex bands, Yoga
belt, sports elastic belt, Mandrel Cutting Machine; Slicing Cutting Machine; Precision
machines for cutting off rings and slices; Oil filter sealing
gasket making machine; Slice machine; Slicer; Circular knife
cutting machines for cutting gaskets; Rubber gasket cutting
machine; Gasket making machine; Rotary style gasket cutter; Rotary cutting machine; Rubber slitting
machine; Machines for hose and tube processing; Cutting machine for
hoses and tube processing; Machine for rubber and plastic
processing; Cutting machine for gaskets and o-rings;
