Fully Automatic Oil Seal Spring Loading Machine with Oil Ejector

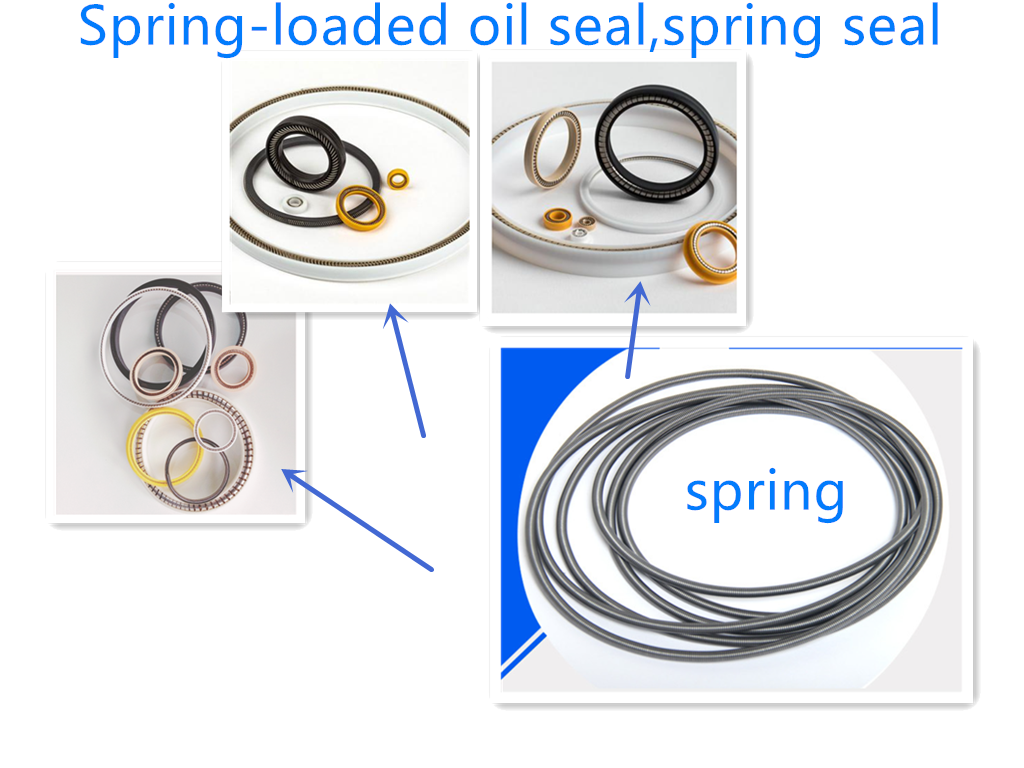

This machine is used to load springs for oil seals meanwhile
filling the oil.
Auto processing line includes auto feeding, locating, springs
loading, spring loading inspection, oil filling, auto offloading,
and auto separating good products from defective products.
Auto-finish all working processes with high efficiency to cut down
production costs.
Features:
- The vibrating tray vibrates the rubber parts to the appropriate
location.
- The machine adopts PLC+ industrial touchscreen control, simple
operation, and intuitive data, according to the requirements of
various non-standard customs.
- The air cylinder pushes the jig to combine the oil seal with the
spring at a breakneck speed;
- Automatically oil filling via high precision oil pump;
- Automatically detects spring loading via probe;
- For various shapes and sizes.;
VIDEO OF
OUR AUTO SPRING LOADING MACHINE FOR OIL SEAL
Technical Parameters
| Structure & Main data | Model | YH-SM-20 | YH-SM-40 | YH-SM-60 |
| Oil seal ranges | Ø8~20 | Ø20~40 | Ø30~50 |
| Spring range (mm) | ~Ø15 | ~Ø30 | ~Ø35 |
| Vibrating tray (mm) | 300 | 400 | 600 |
| Air system (Mpa) | Requires 0.5~0.8 (80 psi)good clean compressed air; |
| Electrical Connection | Three Phase /AC380V±5%
50/60 Hz |
| 0.75 KW | 1 KW | 1.5 KW |
| Feeding way of Spring | Magnet plate |
| Feeding way of oil seal | Vibrating tray |
| | Feeding way of oil (Option) | Precision Oil Pump |
| |
| Function & Performance | Operation & Control Mode | PLC & HMI |
| Auto feeding and auto unloading, are fully automatic processes. |
Process
OIL SEAL: Sorting( Vibrating Tray)→Transmit (Converyor)→Feeding
SPRING: Sorting( Turnover device)→Transmit (Magnetic
device)→Feeding
OIL SEAL & SPRING: →Fixing →Detection→Filling Oil
(Option)→Discharging |
| Fixing | The air cylinder pushes the fixture to combine the oil seal with
the spring at a breakneck speed; |
| Detection | Automatically detects spring loading via probe; |
| Efficiency (pcs/min) | 15~25 | 10~20 | 10~15 |
| |
| Packing Infos | Equipment Weight(KG) | 320 | 380 | 420 |
| Equipment Size(cm) | 105*80*160 | 125*90*165 | 145*100*165 |
Order Options :
Size of Conveyor;
Color of Machine;
Control Mode: Button or HMI;
Double /Single Spring FILLING device;
Oil filling/Ejector;
